Malleable

View as Grid List Table
ModelDescriptionMaterialSizeFinishMaster CartonQuantity
7015/16-18" Beam Clamp (Malleable Iron),  Up to 3/4" Flange, 5/16"-18 Tapped Holes Bottom and Back Of Beam Clamp, Malleable IronMallable Iron1.70" x 1.63" x 1.58"Zinc Plated2525
7001/4" Beam Clamp (Malleable Iron),  Up to 5/8" Flange, 1/4"-20 Tapped Holes Bottom and Back Of Beam Clamp, Malleable IronMallable Iron1.40" x 1.10" x 1.38"Zinc Plated5050
7001010-24" Beam Clamp (Malleable Iron),  Up to 3/4" Flange, #10-24 Tapped Holes Bottom and Back Of Beam Clamp, Zinc PlatedMallable Iron1.45" x 1.20" x 1.38"Zinc Plated5050

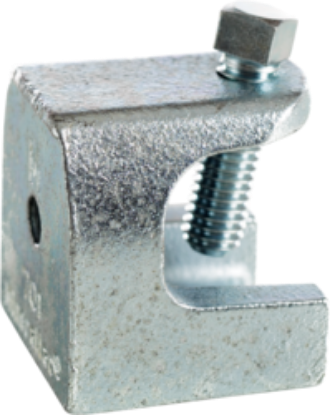

700M6M6 Beam Clamp MalleableMallable Iron1.40" x 1.10" x 1.38"Zinc Plated5050
7023/8-16 Beam Clamp (Malleable Iron),  Up To 3/4" Flange, 3/8"-16 Tapped Holes Bottom and Back Of Beam Clamp, Malleable IronMallable Iron1.80" x 2.00" x 1.90"Zinc Plated2525

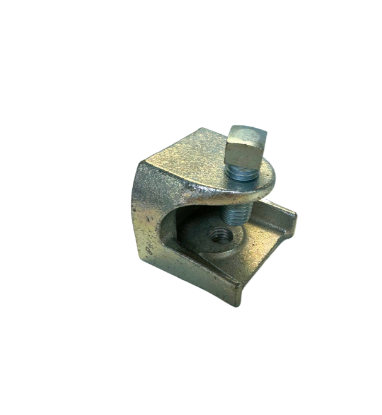

7031/2-13 Beam Clamp (Malleable Iron),  Up to 7/8" Flange, 1/2"-13 Tapped Holes Bottom and Back Of Beam Clamp, Malleable IronMallable Iron2.16" x 2.48" x 2.63"Zinc Plated2525

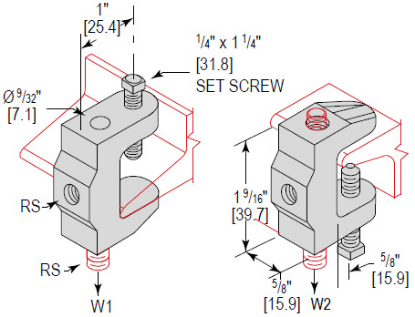

BCUBM25EGBeam Clamp Universal Malleable Iron 5/8" Flange 1/4" Rod Size, Zinc PlatedSteelElectro-galvanized100100

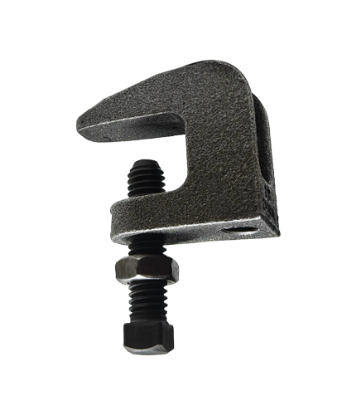

BCUM37EGBeam Clamp Universal Malleable Iron 5/8" Flange 3/8" Rod, Zinc PlatedSteelElectro-galvanized5050
BCUM37PLBeam Clamp Universal Malleable Iron 5/8" Flange 3/8" Rod, Zinc PlatedSteelPlain Steel5050
BCUM50EGBeam Clamp Universal Malleable Iron 5/8" Flange 1/2" Rod, Zinc PlatedSteelElectro-galvanized5050
BCUM50PLBeam Clamp Universal Malleable Iron 5/8" Flange 1/2" Rod, Zinc PlatedSteelPlain Steel5050
BCUM62EGBeam Clamp Universal Malleable Iron 5/8" Flange 5/8" Rod, Zinc PlatedSteelElectro-galvanized2525

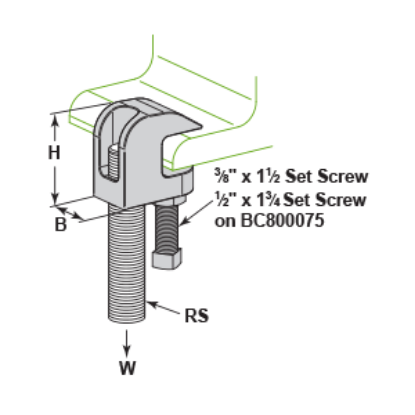

BCUM62PLBeam Clamp Universal Malleable Iron 5/8" Flange 5/8" Rod, Zinc PlatedSteelPlain Steel2525
BCUM75EGBeam Clamp Universal Malleable Iron 5/8" Flange 3/4" Rod, Zinc PlatedSteelElectro-galvanized2020
BCUM75PLBeam Clamp Universal Malleable Iron 5/8" Flange 3/4" Rod, Zinc PlatedSteelPlain Steel2020

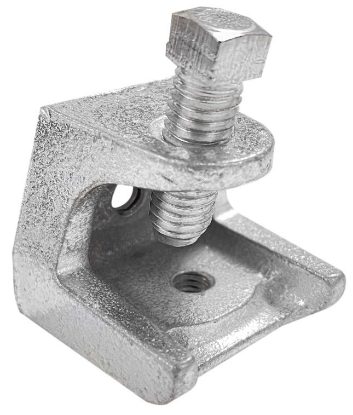

702LSet Screw Beam Clamp (Malleable Iron), Fits Up to 1/2" Flange, 3/8"-16 Tapped Holes Bottom and Back of Beam Clamp, Zinc PlatedMalleable Iron1.80" x 2.00" x 1.90"Zinc Plated2525
PCSW25C or "Z" Purlin Set Screw Clamp, Swivel Rod Hanger fits 1/4"-20 threaded rod, Fits up to 1/4" Flange, Zinc Plated2525

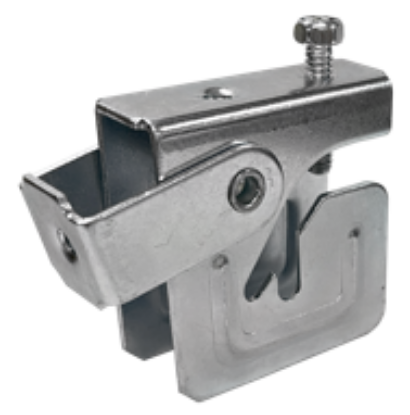

PCSW37C or "Z" Purlin Set Screw Clamp, Swivel Rod Hanger fits 3/8"-16 threaded rod, Fits up to 1/4" Flange, Zinc Plated2525
