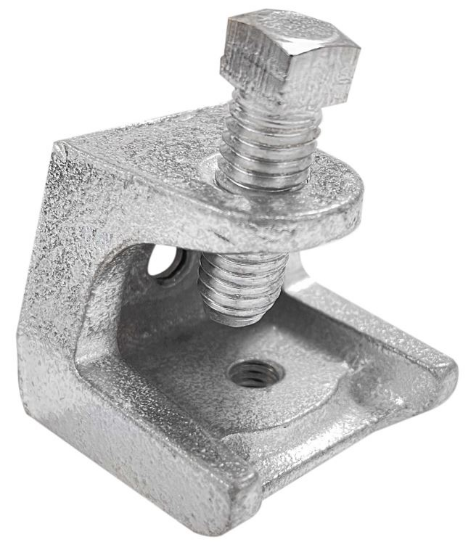

Beam Clamp

Set Screw Beam Clamp (Malleable Iron), Fits Up to 1/2" Flange, 3/8"-16 Tapped Holes Bottom and Back of Beam Clamp, Zinc Plated

SKU: 702L

Product Status: Active

UPC: 78461004710

UNSPSC: 31162905

Country of Origin: CHINA

Package Quantity: 25

Master Carton Quantity: 25

Products specifications

Brand Name	Minerallac
Sub Brand	Minerallac Traditional
Type	Beam Clamp
Application	For use with conduit hangers, bridle rings, and drop rods 3/8" to 1/2".
Special Features	Case hardened steel set screw tapped at an angle locks on beam.
Size	1.80" x 2.00" x 1.90"
Finish	Zinc Plated
Torque Rating	125
Clip Type	Flange Clamp
Length	2.00"
Width	1.90"
Color	Silver
Maximum Clamp Diameter	3/4"
Set Screw	1/2"-13
Flange Width	3/4"
Rod Size	3/8"
Material	Malleable Iron
Static Load Limit (Bottom Hole Only)	525lbs

Download Spec Sheet

Product compliance

Buy America Act	NO
Buy American Act	NO
FTC Compliant	NO
RoHS	NO
SDS	NO

Prop65 Compliance

⚠ WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
