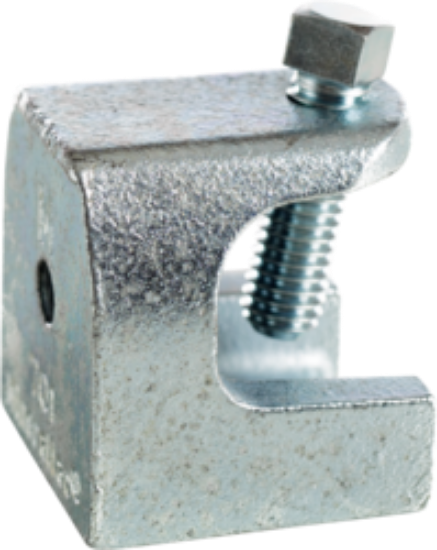

Beam Clamp

Set Screw Beam Clamp (Malleable Iron), Fits Up to 3/4" Flange, #10-24 Tapped Holes Bottom and Back of Beam Clamp, Zinc Plated

SKU: 70010

Product Status: Active

UPC: 78461024710

UNSPSC: 31162905

Country of Origin: USA

Packaging: Corrugated

Unit of Measure: C

Package Quantity: 50

Master Carton Quantity: 50

Brand Name	Minerallac
Sub Brand	Minerallac Traditional
Type	Beam Clamp
Special Features	Case hardened steel set screw tapped at an angle locks on beam.
Material	Malleable Iron
Finish	Zinc Plated
Clip Type	Flange Clamp
Length	1.20"
Width	1.38"
Color	Silver
Maximum Clamp Diameter	3/4"
Flange Width	3/4"
Rod Size	#10-24
Static Load Limit (Bottom Hole Only)	275 lbs
Application	For use with conduit hangers, bridle rings, and drop rods 3/8" to 1/2".
Size	1.45" x 1.20" x 1.38"
Torque Rating	40lbf-in.
Set Screw	1/4"-20

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
