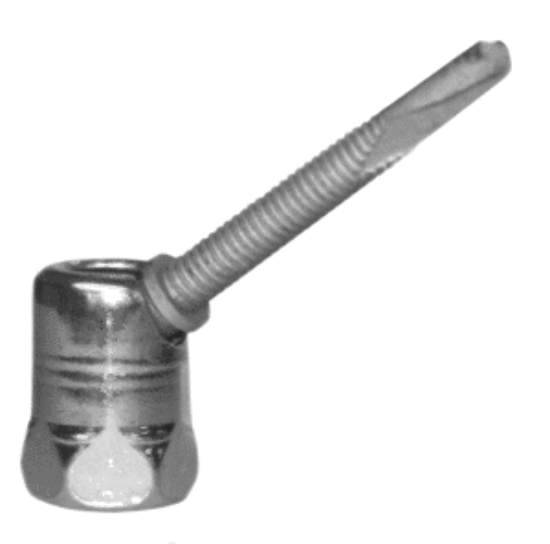

Rod Hanger

1-5/8" SWIVEL TEKS 5 ITW Sammys® Rod Hanger for Steel, 70° MaxSwivel Mounting, 3/8" Rod, Model #SH-TEK50, Zinc Plated, 25ct Jar

SKU: 61206J

Product Status: Active

UPC: 08593799257

UNSPSC: 31161502

Country of Origin: USA

Packaging: Jar

Unit of Measure: C

Package Quantity: 25

Master Carton Quantity: 150

Brand Name	Minerallac
Sub Brand	Cully
Type	Rod Anchor
Material	Steel
Rod Size	3/8"
Head Color	Silver
Finish	Electro-Zinc
Special Features	One-step installation process reduces installation time and cost, Eliminates distortion of threaded rod in sloped roof applications, Accommodates 3-1/2 x 12 pitch, Installs into angled z-purlin
Application	Use in applications where access to the back of the installed fastener is prohibited, ie. Metal roof deck, tubular steel, or vapor barrier fabric
Substrate	Steel
Mounting	Swivel
Screw	12-24 x 1-5/8" TEKS 5
Max Swivel Degrees	70°
Ultimate Pullout (lbs)	2368 (1/2" steel vertical) 1306 (45° off vertical) 2281 (3/16"HSS) 1585 (3/16" HSS 45° off vertical)

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
