Drop-In Anchor

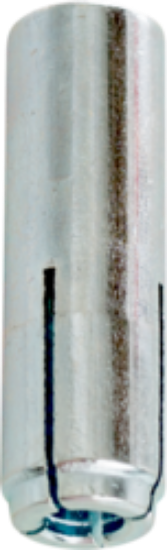

1/4-20 x 1" Steel Drop-In Anchors, Includes Setting Tool, Zinc Plated,Jar
SKU: 60402USJ
Product Status: Active
UPC: 08593705806
UNSPSC: 31162101
Country of Origin: USA
Package Quantity: 100
Master Carton Quantity: 600
Products specifications
Brand NameMinerallac
Sub BrandCully
TypeSteel Drop-In Achor
Size1/4"-20 x 1"
Diameter0.250"
Length1.000"
Minimum Embedment Depth1.000"
Thread TypeInternal Threads
Thread Length0.875"
Thread per Inch20
Drill Size3/8"
MaterialSteel
FinishZinc Plated
Overall Length1"
Rod/ Anchor Size1/4"
Ultimate Load Capacities (2000 PSI Concrete)1140 lbs Tension, 2120 lbs Shear
Allowable Load Capacities (2000 PSI Concrete)285 lbs Tension, 530 lbs Shear
ApplicationSteel Drop-In Anchor is an all steel anchor for us in solid concrete, lightweight concrete, and concrete-filled steel deck members. THe anchors can also be considered for hand stone and solid block base materials.
UsesSuspending conduit, concrete formwork, fire sprinkler supports, pipe supports, cable trays and strut, suspended lighting
Outside Diameter3/8"
Product compliance
Buy America ActNO
Buy American ActYes
FTC CompliantNO
RoHSUNSPECIFIED
SDSNO
Prop65 Compliance

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
