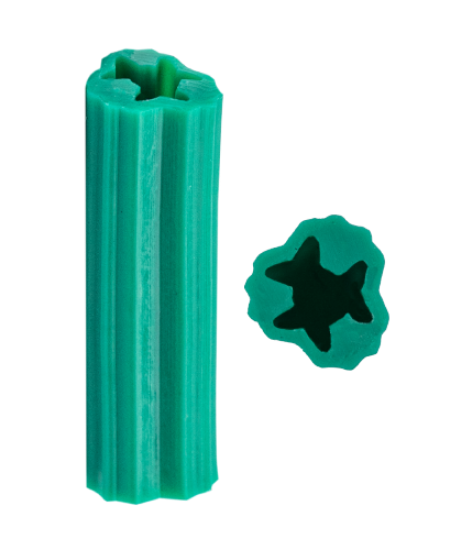

Green Plug Anchor

#10-12 Green Plastic Plug Anchors,Jar

SKU: 59425J

Product Status: Active

UPC: 08593798970

UNSPSC: 31162101

Country of Origin: TAIWAN

Package Quantity: 100

Master Carton Quantity: 1200

Brand Name	Minerallac
Sub Brand	Cully
Type	Fluted Anchor
Special Features	The fluted plastic anchor is a light-duty part that can be used in stone, concrete, hollow block or brick.
Application	Not suited for applications where holding power is important and should not be installed in overhead areas. For use with self-tapping or wood screws.
Size	#10-12
Length	1.000"
Minimum Embedment Depth	1.000"
Drill Size	1/4"
Material	Engineered plastic
Tension Strength	In 4,000 PSI Concrete: 140
Shear Strength	In 4,000 PSI Concrete: 215
Color	Green
Drill Diameter	1/4"
Ultiamte Load Capacities (2000 PSI Concrete)	440 lbs Tension, 280 lbs Shear
Allowable Load Capacities (2000 PSI Concrete)	110 lbs Tension, 70 lbs Shear
Anchor Size	#10-12 x 1"

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
