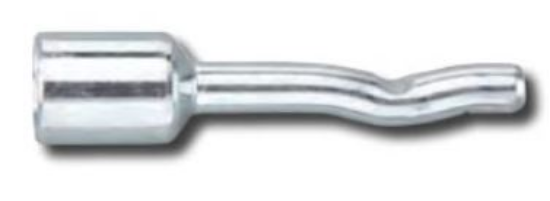

Hammer Drive Anchor

1/4" x 1-1/4" Rod Coupling, Pipe Spike Anchor, Zinc Plated, 50/Jar

SKU: 59170J

Product Status: Active

UPC: 08593705441

UNSPSC: 31162107

Country of Origin: CHINA

Packaging: Jar

Unit of Measure: C

Package Quantity: 50

Master Carton Quantity: 300

Brand Name	Minerallac
Sub Brand	Cully
Material	Carbon Steel
Drill Size	3/16"
Ultiamte Load Capacities (2000 PSI Concrete)	780 lbs Tension, 975 lbs Shear
Allowable Load Capacities (2000 PSI Concrete)	195 lbs Tension, 245 lbs Shear
Interal Thread	1/4" - 20
Rod Anchor Size	1/4" x 1-1/4"
Shank Diameter	3/16"
Type	Rod Coupling Drive Anchor "Spike Anchor"
Finish	Zinc Plating
Application	Designed for rod hanging the spike anchor is a one-piece vibration resistant anchor for use in concrete, block, or stone. The spike anchor is designed with an "s" shape at the working end of the anchor to create an expansion mechanism. No secondary tightening operation required.

This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
